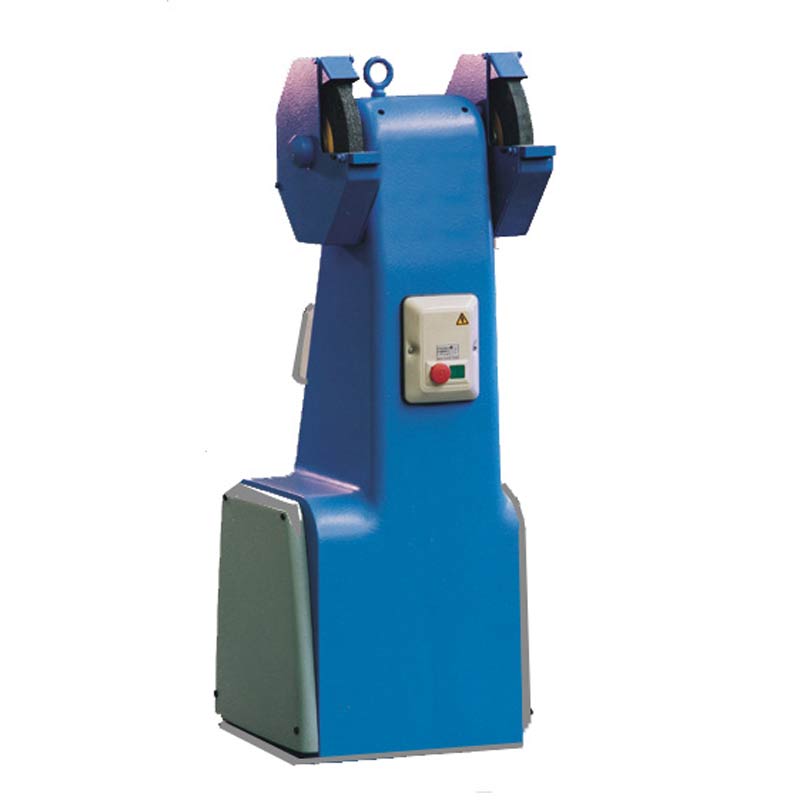

250mm Cast Iron Middle Weight Grinder

The 250mm grinder is a versatile middle weight – 2250rpm machine that can be manufactured to accept various work station configurations, namely:- Grinder / Grinder, Grinder / Side Grinder, Grinder / Polisher and Grinder / Wire Brusher. This grinder is complete with a cast iron pedestal and is ideal for use in both industrial or educational workshops.

Features:

All models are fitted with heavy duty work station guarding and equipped with:

  • Spark deflectors
  • Eye shield protection
  • Adjustable work rests
  • Sealed for life bearings
  • Standard size consumable media
  • “V” belt motor drive to spindle.
  • Electrical controls are of the “No Volt” release type with thermal overload contactors.
  • Supplied with either single or three phase motor drives. (0.75 Kw, 1 HP, 50/60Hz)

    Note:

    Machines running at 60Hz will have the spindle speed increased by 20%, therefore grinding wheels must be speed rated accordingly.

    Grinding spindles are 20mm diameter, however the wheel plates accept 31.75mm Grinding Wheels. Polisher models have “Pigtail” spindles (Taper Thread Style), Generally Brushers are fitted with 19mm plain diameter spindles however some clients utilise the “Pigtail” spindle as per the polisher set up. To reduce vibration potential we recommend plain spindles for wire brushing. Guarding is supplied with or without extraction ports, to be specified at time of order.

  • SPECIFICATIONS GG250 GS250 PP250 WW250
    MEDIA 250x25x19.05 250x25x19.05 250 O/D Max 250 O/D Max
    STANDARD GRIT/GRADE A30/A60 A30/A60 N/A 30 swg
    CENTRES 300 N/A 575 575
    HEIGHT TO SPINDLE 914 914 914 914
    OVERALL HEIGHT 1067 1067 1080 1080
    FOOTPRINT MAX 435x570 435x630 740x565 740x565
    WEIGHT 140Kg 145Kg 130Kg 135Kg
    Hi-Spec CNC products are designed and manufactured to comply with all statutory safety requirements in force within the European Union; marked and certified accordingly.

    Particular attention must be given, by the end user, to any mandatory local or national requirements, especially those relating to grinding wheels; the protection of eyes and control of substances hazardous to health.
    Product Code Description Mounting Speed Motor
    PGG250F-1PH 250mm - Grinder / Grinder Cast Iron Pedestal 2500rpm Single Phase
    PGP250F-1PH 250mm - Grinder / Polisher Cast Iron Pedestal 2500rpm Single Phase
    PGW250F-1PH 250mm - Grinder / Wire Brusher Cast Iron Pedestal 2500rpm Single Phase
    PGS250F-1PH 250mm - Grinder / Side Grinder Cast Iron Pedestal 2500rpm Single Phase
    PGG250F-3PH 250mm - Grinder / Grinder Cast Iron Pedestal 2500rpm Three Phase
    PGP250F-3PH 250mm - Grinder / Polisher Cast Iron Pedestal 2500rpm Three Phase
    PGW250F-3PH 250mm - Grinder / Wire Brusher Cast Iron Pedestal 2500rpm Three Phase
    PGS250F-3PH 250mm - Grinder / Side Grinder Cast Iron Pedestal 2500rpm Three Phase
