FLAT BED TOOL SHARPENER / CONE WHEEL

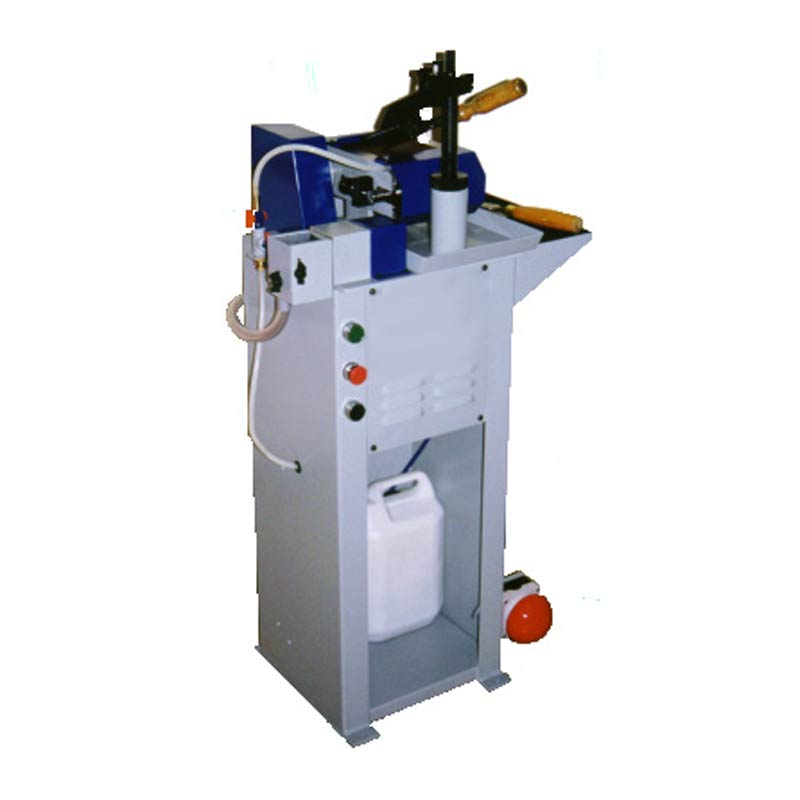

A flat bed sanding machine for sharpening chisels, plane blades or other flat tools, utilising a fine abrasive belt running at 2.2m/s on a flat bed. This arrangement eliminates the need for time consuming re-grinding associated with traditional tool sharpening machines. The adjustable tool arm will give a range of angles from 20º-35º for tool widths up to 75mm. An internal coolant system ensures the tool is kept cool at all times. A belt driven conical point (3000rpm) is mounted to the side of the machine for the grinding of radius gouges. A lockable tool cabinet in the base of the machine is standard issue. This machine can be supplied in its most basic form, without the conical point and radius gouge attachment or as the complete tool sharpener system.

100mm / 150mm Wide Belt Sanders

  • Positive thumbscrew tracking and track locking
  • Crowned rollers to maintain tracking
  • Simple belt changing
  • Quiet direct motor drive – 0.25Kw
  • Standard size belts – choice of grit sizes
  • Integrated coolant system – stored within pedestal
  • Rotational tool mount over belt width
  • Optional cone wheel assembly for gouge sharpening
  • Electrics: no volt release contacts
  • CE certified, thermal overload protection as standard
  • Low voltage lighting an optional extra
  • SPECIFICATIONS UNITS PSH100 PSH150 PSV100 PSV150
    Belt Size (80 grit) mm 100x915 150x1090 100x915 150x1090
    Table Platen / Work Rest Working Height mm 140 140 210 230
    Table Platen / Fixed Table Work Area mm 150x230 200x310 175x100 224x100
    Table Platen / Adjustable Table Work Area mm n/a n/a 125x150 254x225
    Belt Speed m/s 6.5 6.5 6.5 6.5
    Motor 3 Phase Kw 0.75 0.75 0.75 0.75
    Motor 1 Phase Kw 0.75 0.75 0.75 0.75
    Motor Drive Shaft Speed rpm 1400 1400 1400 1400
    Footprint – Fixed Work Rests mm 480x480 480x540 420x460 460x460
    Footprint – Adjustable Work Rests mm n/a n/a 430x470 470x470
    Overall Height mm 180 180 465 555
    Clarendon products are designed and manufactured to comply with all statutory safety requirements in force within the European Union; marked and certified accordingly.

    Particular attention must be given, by the end user, to any mandatory local or national requirements, especially those relating to grinding wheels; the protection of eyes and control of substances hazardous to health.
    Product Code Description Mounting Speed Motor
    FBTS-1PH Flat Bed Tool Sharpener Pedestal 3000rpm Single Phase
    FBTS-3PH Flat Bed Tool Sharpener Pedestal 3000rpm Three Phase
    FBTSCW-1PH Flat Bed Tool Sharpener with Cone Wheel Pedestal 3000rpm Single Phase
    FBTSCW-3PH Flat Bed Tool Sharpener with Cone Wheel Pedestal 3000rpm Three Phase
